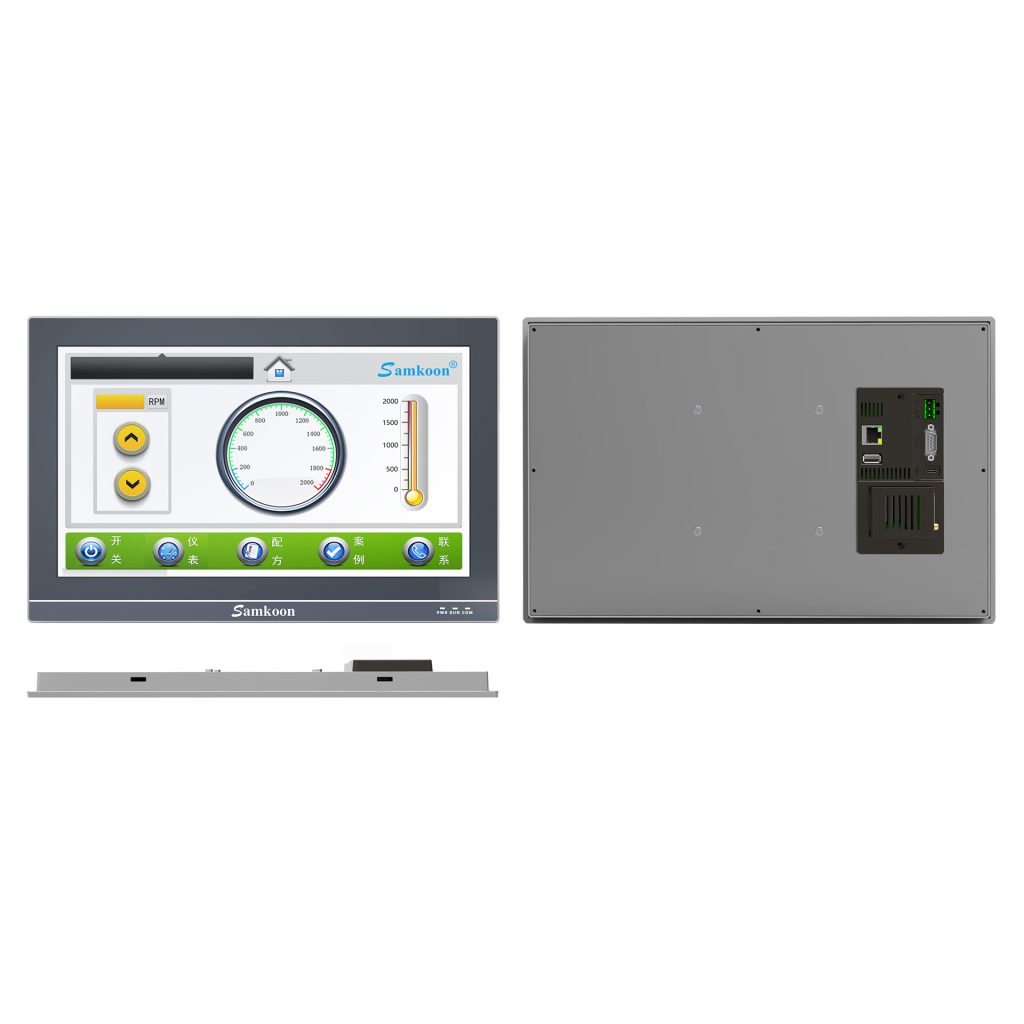

SK-156QS-G

This product offers high performance with a Linux-based system, Cortex A7 processor, and supports diverse functions like data collection, multi-language PLC communication, and advanced security. It features comprehensive interface options, vibrant 16.77 million color display, and meets FCC, Class A, and CE certifications for quality.

Contact Us For Details

Tanveer Ahmed  +92 347 6670660 Muhammad Tariq Sohail  +92 313 4212137

PRODUCT FEATURES

  1. High-Performance Configuration
    • Based on the Linux system, offering stability, efficiency, security, and reliability.
    • Industrial-grade, high-performance Cortex A7 processor with a maximum frequency of 1.2GHz.
    • Large capacity of 4G (EMMC) + 256MB DDR3, supporting external USB storage.
    • Optional WIFI/4G IoT expansion module (display control IoT expansion module, with WIFI and 4G mode options, supports the display control cloud platform, plug-and-play).

  2. Diversified Functional Modules
    • Supports multiple recipe groups and multi-window functionality.
    • Supports data collection and data alarm functions.
    • Supports macro instructions developed in C language.
    • Supports Chinese input.
    • Supports over 300 PLC communication protocols.
    • Supports 50 languages.
    • Rich functionality and diversified controls.

  3. Comprehensive Interface Integration
    • Supports various communication methods (RS232/422/485, Ethernet, 4G, WIFI).
    • Supports Ethernet downloading and USB drive updates for configuration.

  4. New Password Mechanism
    • Configuration file encryption.
    • Payment in installments, HMI protection.
    • Multiple security mechanisms, providing enhanced safety and reliability.

  5. Rich Color Selection
    • Displays 16.77 million true colors.

  6. Strict Quality Control
    • Certified by FCC, Class A, and CE.

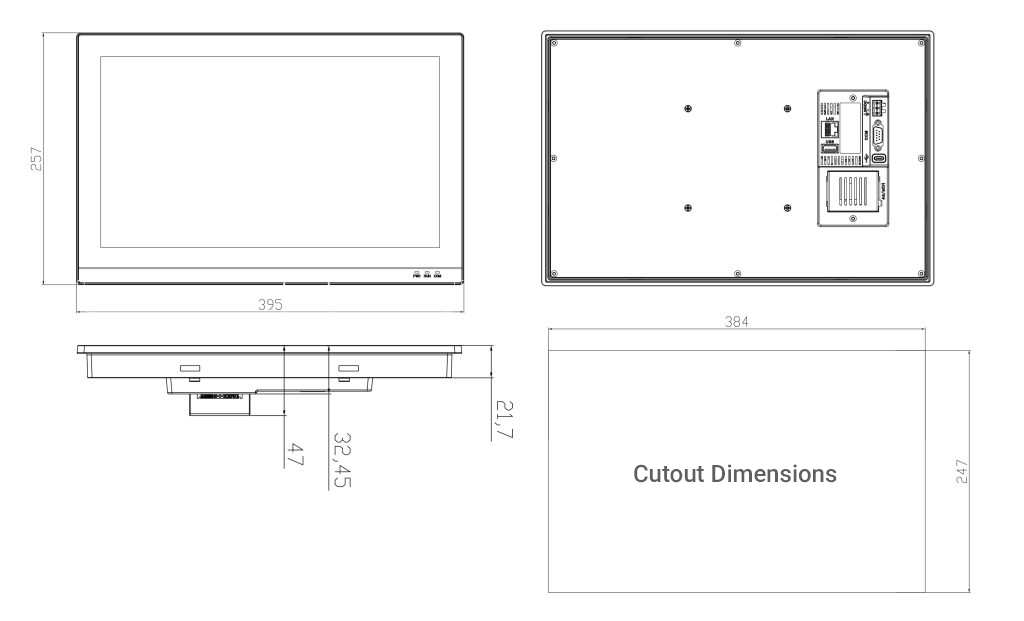

Structural Specifications:

  • Dimensions: 395×257×21.7mm
  • Mounting Hole Size: 384×247mm
  • Weight: 2300g
  • Enclosure Material: Aluminum alloy galvanized sheet

Display:

  • Display Size: 15.6″ (16:9)
  • Resolution: 1920×1080 pixels
  • Touch Panel: 4-wire high-precision touch panel
  • Display Colors: 16.77 million
  • Backlight: LED
  • Contrast Ratio: 700:1
  • Brightness: 300 cd/㎡

Product Features/Certifications:

  • Memory: 4G (EMMC) + 256MB DDR3
  • CPU: Cortex A7 1.2GHz
  • Withstand Voltage Test: 1000V AC, 1 minute
  • ESD Test: ±6kV
  • FCC Compliance: Meets FCC, Class A
  • CE Certification: Complies with EN55032 and EN55035 standards
  • Protection Rating: IP65 (front panel)

Power/Interfaces:

  • Power Supply: (DC 12~24V) ±15%
  • Power Consumption: 10W
  • Serial Interfaces:
    • COM1: RS232
    • COM2: RS422/485
    • COM3: RS485
  • USB Download Port: Yes
  • USB Port: Yes
  • SD Card Slot: No
  • Ethernet Port: Yes
  • CAN Interface: No

Networking:

  • WiFi: Yes
  • 3G: No
  • Ethernet: Yes
  • 4G: Yes

Environment:

  • Operating Temperature: -20°C to 55°C (no freezing)
  • Operating Humidity: 5% to 95% RH (non-condensing)
  • Vibration Resistance: 10–25Hz (XYZ direction, 2G/30 minutes)
