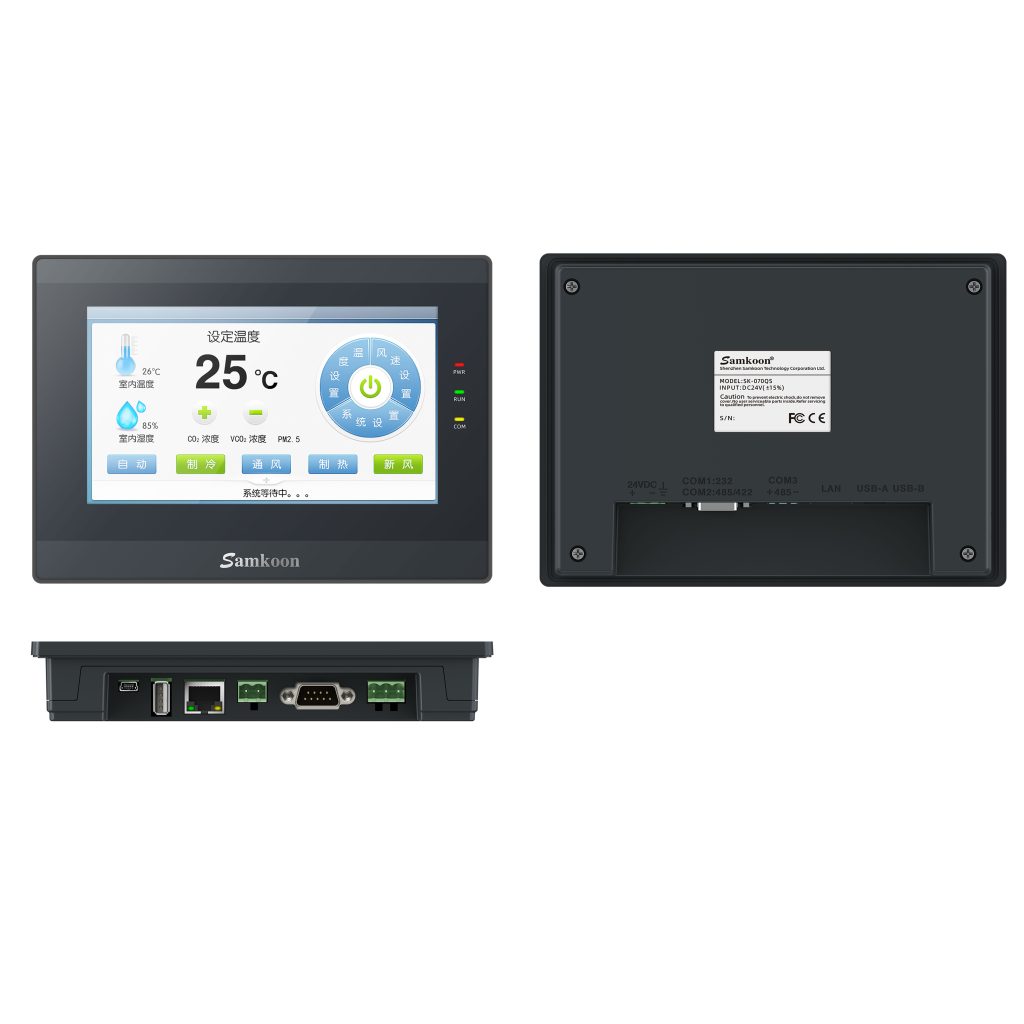

SK-070QS

This HMI device is designed for industrial applications, offering a stable and reliable platform for human-machine interaction. It supports various functions, communication protocols, and languages, making it suitable for diverse industrial settings while ensuring the security and safety of the configuration files. The rich color display and robust quality control contribute to its suitability for industrial automation tasks.

Contact Us For Details

Tanveer Ahmed +92 347 6670660 Muhammad Tariq Sohail+92 313 4212137

Performance Configuration:

  1. Based on the Linux operating system for stability, efficiency, security, and reliability.
  2. Features an industrial-grade Cortex A7 processor with a maximum clock speed of 1GHz.
  3. Equipped with 128MB FLASH and 128MB DDR3 memory, with support for external USB storage.
  4. Compatible with HP printers and micro-printers.

Diverse Function Modules:

  1. Supports multiple sets of recipes and multi-window functionality.
  2. Enables data acquisition and data alarm functions.
  3. Supports the development of macro instructions based on the C language.
  4. Includes Chinese language input support.
  5. Compatible with over 300 PLC communication protocols.
  6. Offers support for 50 different languages.
  7. Provides a wide range of functions and diverse controls.

Comprehensive Interface Integration:

  1. Supports various communication methods, including 232/422/485 serial communication and Ethernet.
  2. Allows for USB downloads, Ethernet downloads, and updating of configuration via a USB flash drive.

New Password Mechanisms:

  1. Encrypts configuration files for security.
  2. Supports installment payments and HMI protection.
  3. Implements multiple security mechanisms for enhanced safety and reliability.

Rich Color Options:

  1. Features a display with 16.77 million true colors.

Stringent Quality Control:

  1. Certified compliance with FCC, Class A, and CE standards.

Structural Specifications:

  • Outer Dimensions: 203 x 145 x 35 mm
  • Mounting Hole Dimensions: 192 x 138 mm
  • Weight: 700 grams
  • Housing Material: ABS+PC engineering plastic

Display:

  • Display Size: 7″ (16:9)
  • Resolution: 800 x 480 pixels
  • Touch Panel: 4-wire high-precision touch panel
  • Display Colors: 16.77 million
  • Backlight: LED
  • Contrast Ratio: 400:1
  • Brightness: 450 cd/m²

Product Features/Certifications:

  • Memory: 128MB Flash + 128MB DDR3
  • CPU: Cortex A7 1GHz, dual-core
  • Voltage Withstand Test: 1000V AC for 1 minute
  • Electrostatic Test: 4 levels of ±8kV
  • FCC Compatibility: Complies with FCC Class A
  • CE Certification: Complies with EN55032 and EN55035 standards
  • Protection Rating: IP65 (front panel)
  • Power/Interfaces:
    • Power Supply: DC 12-24V ±15%
    • Power Consumption: 4W
    • Serial Interfaces: COM1 (RS232), COM2 (RS485/RS422), COM3 (RS485)
    • USB Download Port: Yes
    • USB Flash Drive Port: Yes
    • SD Card: No
    • Ethernet Port: Yes
    • CAN: No
    • Network Connectivity: Ethernet (Yes), WiFi (No), 3G (No), 4G (No)

Operating Environment:

  • Operating Temperature: -20°C to 55°C (no freezing)
  • Operating Humidity: 5% to 95% RH (non-condensing)
  • Shock Resistance: 10-25Hz (XYZ direction, 2G for 30 minutes)

Programming Software:

This HMI device is designed for industrial applications, offering a 7-inch display with touch capabilities and robust specifications for use in various industrial settings. It has multiple communication interfaces, including serial ports and Ethernet, making it suitable for industrial automation and control applications. It complies with relevant standards for electromagnetic compatibility and protection, ensuring its reliability in industrial environments.
